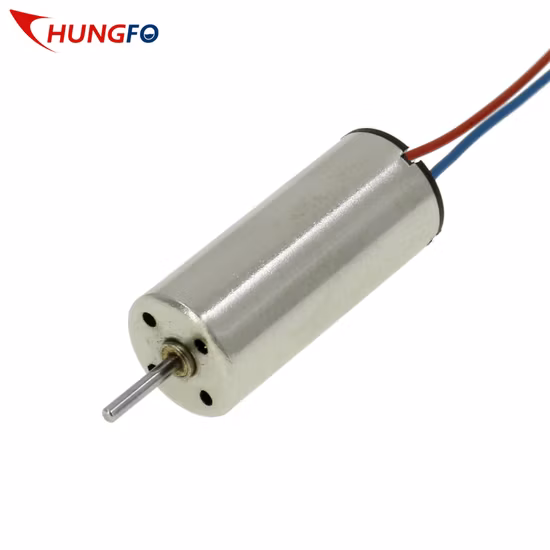

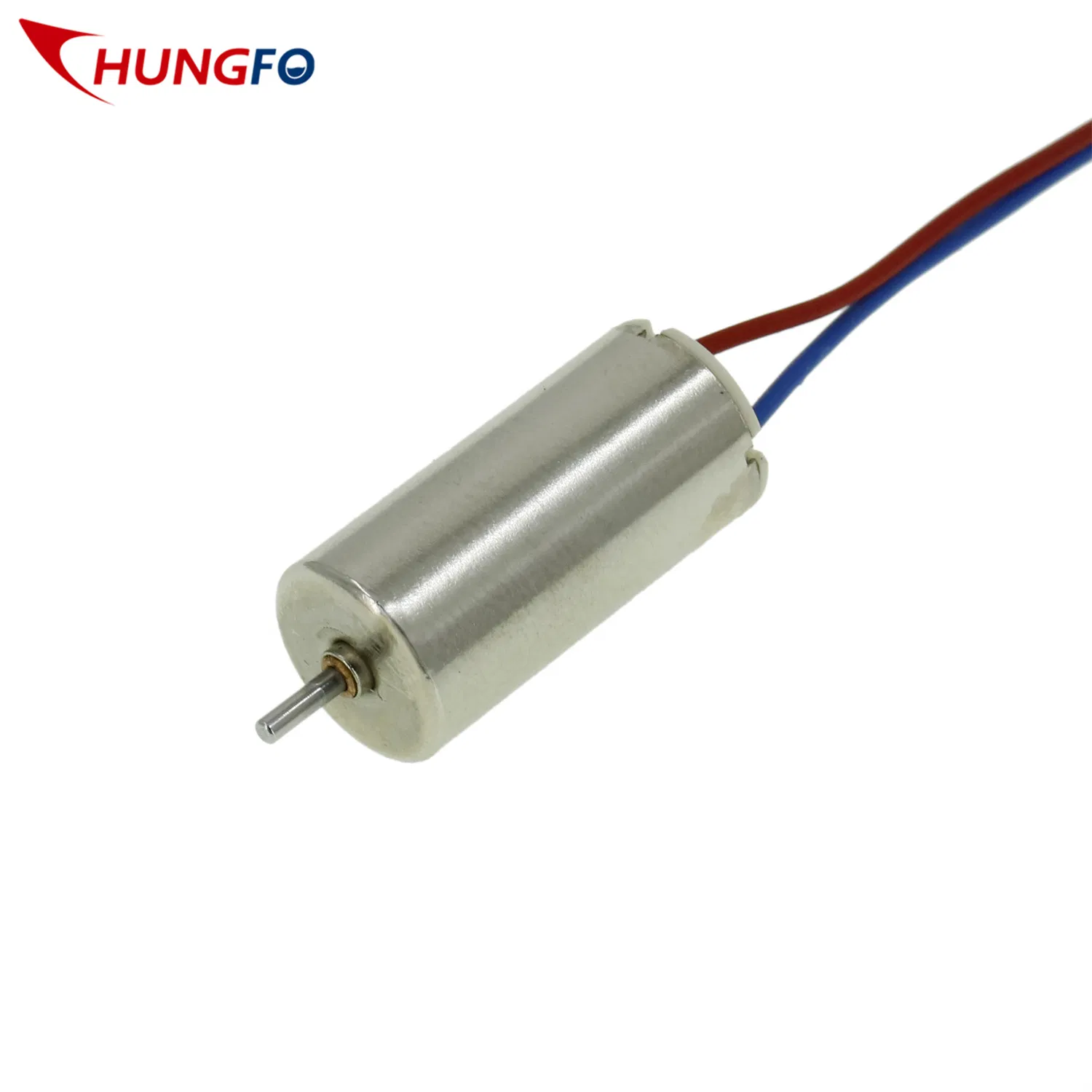

Energy Saving 54000rpm DC Brushes Vibration Rotor Micro Coreless Motor
Company & Factory Appliance
Basic Info
| Model NO. | 6A610 |
| Certification | ISO9001, RoHS, CE |
| Brand | Chungfo |
| Diameter | 6mm |
| Length of Motor Body | 10.3mm |
| Transport Package | Standard Export Carton |
| Specification | 6mm x L10 |
| Trademark | CHUNGFO |
| Origin | China |
| HS Code | 8501109990 |
| Production Capacity | 4 Million PCS/Month |
Product Description
| 6A Series φ6mm x L10 Precious Metal Brushes |
| Motor Paramter | Motor Model | |||||||||||
| Values at nominal voltage | 6A1-135241 | 6A3-070211 | 6A3-188241 | |||||||||
| 1 | Rated voltage | V | 3.0 | 3.7 | 4.5 | |||||||
| Free Load | 2 | No load speed | rpm | 24500 | 53720 | 25813 | ||||||
| 3 | No load current | mA | 15 | 42 | 10 | |||||||
| At Max. Efficiency | 4 | Max. efficiency | % | 45.90% | 52.41% | 56.09% | ||||||
| 5 | Speed | rpm | 13500 | 42092 | 20627 | |||||||
| 6 | Current | mA | 68 | 153 | 40.6 | |||||||
| 7 | Torque | g.cm | 0.31 | 0.69 | 0.48 | |||||||
| At Max. Output | 8 | Max. output | W | 0.08 | 0.44 | 0.16 | ||||||
| 9 | Speed | rpm | 12468 | 26860 | 12907 | |||||||
| 10 | Current | mA | 73.7 | 297.6 | 86 | |||||||
| 11 | Torque | g.cm | 0.63 | 1.58 | 1.2 | |||||||
| At Stall | 12 | Stall current | A | 0.13 | 0.553 | 0.16 | ||||||
| 13 | Stall torque | g.cm | 1.26 | 3.17 | 2.41 | |||||||
| Motor Constants | ||||||||||||
| 14 | Teminal resistance | Ω | 20.5 | 6 | 28.3 | |||||||
| 15 | Torque constant | g.cm/A | 10.5 | 6.2 | 15.93 | |||||||
| 16 | Speed constant | rpm/V | 9284 | 15719 | 6124 | |||||||
| 17 | Speed/Torque constant | rpm/g.cm | 19839 | 15957 | 10724 | |||||||
| Motor Characteristic | Typical Performance | ||||||||||||||||
| Thermal parameters | | ||||||||||||||||
| 18 | Ambient temperature | -20~+65 | ºC | ||||||||||||||
| 19 | Max. permissible winding temperature | 85 | ºC | ||||||||||||||
| Mechanical parameters | |||||||||||||||||
| 20 | Max. penmissible No-load speed | 60000 | rpm | ||||||||||||||
| 21 | Max. axial load(dynamic) | 0.15 | N | ||||||||||||||
| Other parameters | |||||||||||||||||
| 22 | Number of pole pairs | 1 | |||||||||||||||
| 23 | Number of commutator segments | 3 | |||||||||||||||
| 24 | Weight | 1.2 | g | ||||||||||||||
| Remarks | |||||||||||||||||
| 1 | Rotation direction, wire specification and performance parameters can be | ||||||||||||||||
| made according to customer's requirement. | |||||||||||||||||

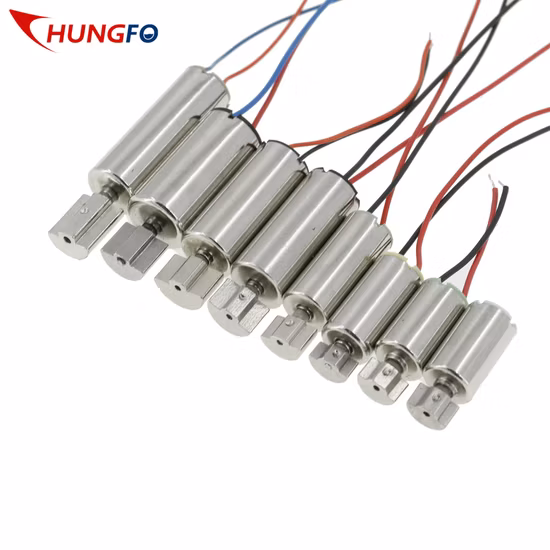

| 2 | Motor can be mounted with various shapes and sizes of eccentric weight which | ||||||||||||||||
| is made of iron, brass or ferro-alloy to become vibration motor. | |||||||||||||||||
| 3 | Dimension with "*" in the drawing can be adjusted according to customer's requirement. | ||||||||||||||||
| 1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm | |||||||||||||||||
